ARAYEM TRADE

Strong lightweight aluminum alloy construction

• With Pistol Grip
• 30-60-95-125 GPM (115-230-360-475 LPM)
• 1.5 " Inlet
• Ideal for use with eductors and foam tube
• Service Kit 1001
• FM Approved

• Strong lightweight aluminum alloy construction
• With Pistol Grip
• 95-125-150-200-250 GPM (360-475-550-750-950 LPM)
• 2.5 " Inlet
• Service Kit 1002

• 3" waterway with turning vanes at each elbow provides flow efficiency
• A double row of ball bearings in the swivel for smooth operation
• Vertical movement controlled by stainless steel handle rod
• Corrosion resistant brass construction
• 360 degree horizontal and 150 degree vertical travel


• Can be used for water application or AFFF Application
• Built in foam eductor

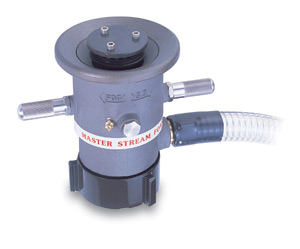

• By installing the #887 nozzle to an existing fixed or portable monitor, you have an instant foam station
• Factory pre-set for 3% proportioning and can be easily changed to 1%
• Each nozzle comes with 9' of clear PVC pick-up hose

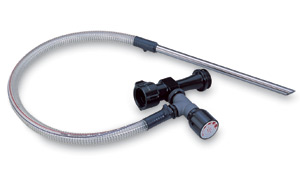

• Constructed with brass

• Attaches to  1.5" or 2.5" nozzles
• 1.5" or 2.5" female. Swivel inlet and 1.5" male outlet
• Rugged all brass construction
• Furnished with reinforced clear PVC pickup hose to prevent kinking
• Check ball to prevent back flow into the foam concentrate
• detachable metering device for cleaning
• 5 Settings: 0.5%, 1%, 3%, 6% and 0 (shutoff)
• Works with most foam concentrates

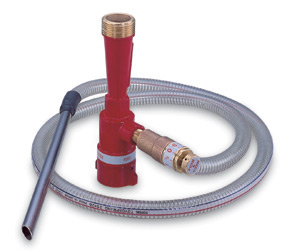

• Lightweight alloy
• 1.5" or 2.5" inlet X 1.5" male
• Rated to flow at 200 PSI (14 bar) inlet pressure
• Check ball to prevent back flows into foam concentrate
• Detachable metering valve with infinite settings between 0% and 6% with detents at 0.25% and 0.5%
• 60, 95, 125 GPM (230, 360, 475 LPM)
